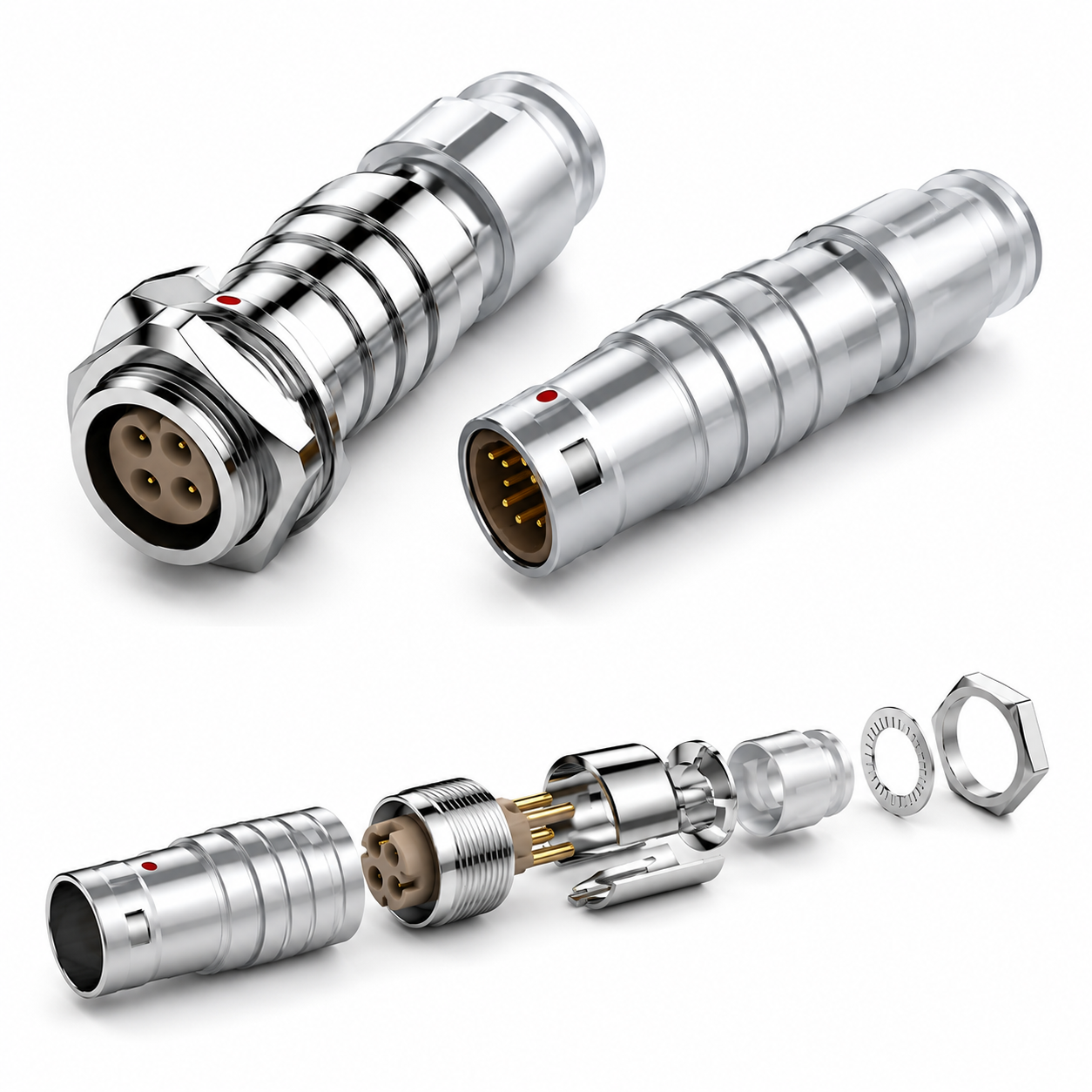

Heavy-Duty Industrial Outdoor Connector IP68 | Certified Interconnect Solutions for Global EPC Systems
Rugged Waterproof Circular Connectors | Shielded Signal & Power Transmission, Multi-Pin Customization, Quick-Lock Design | Direct from ISO-Certified Dongguan Factory
- Description
- FAQ
- Recommended Products
Description
Based in Dongguan, China, we are a factory-direct solution provider with 9 years of experience in industrial interconnect customization, fully dedicated to supporting global EPC projects and OEM integration demands. Our in-house CNC workshop and material testing lab enable full-spectrum customization for waterproof connectors, with no minimum order barriers for prototype verification. We streamline the entire development cycle from layout blueprinting to structural testing, allowing international engineers to rapidly deploy rugged electrical connections in highly demanding environments without compromising project timelines or budget constraints.
Engineers' Choice: Overcoming On-Site Assembly and Environmental Failures
In outdoor industrial operations and global EPC setups, the weakest link is often the physical point of connection. Standard industrial plugs degrade when exposed to continuous moisture, rapid temperature swings, and chemical washdowns, resulting in micro-short circuits or complete power loss.
Our IP68 waterproof connectors are designed specifically to eliminate these field risks. Engineered to protect power, sensor, and data networks under severe environmental stress, our products guarantee seamless operation in applications ranging from marine installations to extreme desert climates. By focusing on mechanical precision and high-grade barrier materials, we deliver a connection that remains secure for years of uninterrupted outdoor service.
Structural & Material Configurations for Specialized Deployments
We believe that physical durability starts with material matching. We offer specialized physical builds designed to match the unique chemistry of your project site:
Heavy-Duty Shell Materials
● Industrial Nylon PA66 & PBT: Excellent electrical isolation, lightweight, and highly resistant to environmental ultraviolet (UV) exposure and cracking. Perfect for general outdoor automation.
● Anodized Nickel-Plated Aluminum Alloy: Engineered for high tensile strength and weight-sensitive applications. Provides a natural barrier against harsh atmospheric corrosion.
● Marine-Grade 316L Stainless Steel: The premium choice for coastal, offshore, and saline environments, preventing oxidation, saltwater pitting, and chemical decay.
Core Contacts & Cable Protection
● High-Conductivity Contacts: Utilizing phosphor bronze base pins finished with heavy gold-plating or silver-plating. This guarantees minimal contact resistance and maximum signal stability even through thousands of mating cycles.
● Flexible Cable Jackets: Outer cable sheath options include ultra-durable Thermoplastic Polyurethane (TPU), chemical-resistant PVC, or high-temperature fluoroplastics, offering robust shielding against abrasive elements, industrial oils, and petroleum.
High-Performance Functionality for Modern Systems
Modern industrial control panels and power grids require smart, secure, and user-friendly connection interfaces. Our connectors feature:
Superior Ingress Sealing: Flexible configurations scaling from standard IP65 dust-proofing up to IP68 and IP69K high-pressure hot-water washdown proofing.
Industrial Salt Spray Resistance: Specialized surface passivation options ranging from 50-hour to 1,000-hour continuous salt spray testing to survive heavy maritime environments.
Electromagnetic Compatibility (EMC): Integrated, 360-degree metallic shielding cages to block EMI and RFI, ensuring clean data transmission adjacent to heavy machinery.
Quick-Mating Lock Mechanisms: Ergonomic push-pull quick-lock or threaded vibration-proof structures that lock instantly and securely with an audible click.
Anti-Error Positioning Features: Integrated physical keys and anti-misalignment coding to eliminate human wiring errors during fast-paced field installations, complemented by optional LED indicators for instant power status checks.
Technical Parameters & Engineering Thresholds
| Engineering Attribute | Operating & Design Tolerances |
| Pin Configurations | 1 Pin to 35 Pins (Tailored signal/power arrangements) |
| Current Ratings | From 1 Amp up to 100 Amps continuous load |
| Maximum Voltage Handling | Tested and certified up to 600V |
| Operational Temperature | Standard limits from $-40^\circ\text{C}$ up to $+175^\circ\text{C}$ |
| Manufacturing Precision | Core component dimensions held tightly at $\pm0.03\text{ mm}$ |
| Standard IP68 Waterproofing | Confirmed at 1 meter submersion depth for 30 minutes |
| Durability Lifecycle | Rated for 250 to 500+ mechanical mating cycles |
| Certifications | Full compliance with CE, RoHS, REACH, and IEC safety standards |
Deployed Across Demanding Global Applications
Our specialized interconnect products are currently trusted by EPC coordinators and system developers across several major global industrial projects:
Infrastructure EPC Control Hubs: High-reliability IP68 modular interfaces installed directly on regional automation control cabinets and outdoor distribution blocks.
New Energy Storage Systems (BESS): Rugged, high-amp connectors certified to UL/CE standards for linking heavy energy battery arrays in Europe and North America.
Coastal Surveillance & Coastal Systems: Weatherproof, salt-spray resistant plugs designed for outdoor monitoring systems along highly humid Southeast Asian tropical coastlines.
Extreme Cold Mining Machinery: Low-temperature, impact-resistant connector structures serving outdoor heavy-duty mining equipment in Northern European sub-zero zones.
Deep Sea & Subsea Operations: Custom high-pressure deep-sea models designed to withstand deep underwater immersion up to 100bar pressure.
Business Advantages: Why Leading EPCs Choose Us
1. Zero Moisture Ingress: True IP68 sealing technology prevents moisture and dust from entering critical panel boxes, keeping operations online.
2. True Climate Adaptability: Formulated to function perfectly between −40°C and +120°C (with customized compounds supporting up to +175°C).
3. Vibration-Proof Mechanical Security: Lock systems stay firmly connected even when mounted on heavy machinery with high levels of industrial vibration.
4. Hassle-Free Regulatory Auditing: Provided with comprehensive CE, RoHS, and IEC compliance certificates, allowing your system to pass local engineering acceptance easily.
5. Accelerated Prototype Turnaround: Rapid small-batch production schedules completed and shipped in as little as 10 working days.
FAQ
Q1: Are your waterproof connectors compatible with our existing industrial automation system without extra modification?
A1: Yes. Our waterproof connector range fully supports standard M12, aviation plugs, and various panel-mount designs. We conform to international physical standards, making them direct drop-in replacements for mainstream global automation lines. We also offer free 3D CAD modeling so your designers can verify mechanical compatibility before purchasing.
Q2: Can your products pass the local project certification requirements in the EU and Southeast Asia?
A2: Absolutely. All our products are shipped with complete CE, RoHS, and IEC laboratory test reports. These documents provide the necessary verification for fast-track regulatory clearance and project handovers in Europe, Southeast Asia, Australia, and the Americas.
Q3: What is the maximum continuous immersion depth and service life of your IP68 waterproof connectors?
A3: Our standard IP68 series is certified for continuous water immersion at depths of up to 10 meters for 2 weeks. They easily achieve a lifespan of over 500 mating cycles. For specialized deep-sea offshore exploration, we can custom-manufacture connectors rated to withstand up to 100bar of hydrostatic pressure.
